The JX S5200 series is a next-generation green gigabit Ethernet switch for campus networks with flexible gigabit access and 10GE uplinks. It supports flexible Ethernet networking, diverse security controls, easy management, IPv4/IPv6 dynamic routing, mature IPv6 features, and intelligent virtualization for reliable, scalable smart access networks.
Intelligent Virtualization Technology
Logically virtualizes multiple devices into a single switch to simplify configuration and management. Stacking is an efficient device/link backup solution: redundant backup between member devices improves device-level reliability; cross-device link aggregation improves link-level reliability and load balancing; adding member devices easily expands ports and bandwidth. Smooth upgrades are supported with no service interruption during upgrade.
Flexible Ethernet access.
Flexible interfaces: Gigabit downlink and 10 GE uplink series with 8/24/48 electrical downlink and 24/48 all-optical downlink options. Uplinks are fully upgraded to 10 GE to meet surging bandwidth demand and are compatible with 1 GE and 100M optical modules.
Carrier-grade high reliability.
Supports traditional STP/RSTP/MSTP and G.8032 ring protection with single-ring, tangent-ring, and intersecting-ring topologies, delivering carrier-grade reliability with fast service switchover within 50 ms.
Supports port backup dual-homing protection and LACP link aggregation for uplink redundancy, greatly improving network-side reliability. Loop detection automatically discovers and removes loops while keeping the customer network stable.
Supports dual primary/backup operating systems. In production networks, if the primary system fails, the device automatically switches to the backup system for improved stability and reliability.
Supports comprehensive Ethernet OAM (IEEE 802.3ah/802.1ag) for fast link fault detection.
Supports power redundancy: high-density access products optionally support dual power supplies for improved reliability.
Comprehensive security control.
Supports comprehensive security authentication: IEEE 802.1X, MAC authentication, and bypass authentication. Authentication servers include RADIUS and TACACS+ for flexible campus and enterprise multi-authentication requirements.
ARP attacks and ARP viruses are among the top LAN security threats. Rich ARP defense features are supported, including Dynamic ARP Inspection for user legitimacy and ARP packet validity checks, and ARP rate limiting to prevent ARP floods from overwhelming the CPU.
Builds and maintains DHCP Snooping binding tables and drops illegal packets that do not match bindings. Trusted port characteristics ensure DHCP server legitimacy.
Supports SSH 2.0 remote access, SFTP upload/download, and HTTPS web management with encrypted protocols for secure administration.
Rich QoS policies.
Supports Layer 2–4 packet filtering based on source/destination MAC, source/destination IP, TCP/UDP port, protocol type, and VLAN flow classification.
Provides flexible queue scheduling based on ports and queues with SP, WFQ, and SP+WFQ modes. CAR is supported.
Supports ingress and egress port mirroring to monitor packets on specified ports by copying them to a monitor port for network analysis and troubleshooting.
Also supports Telemetry for precise traffic monitoring and analysis on gigabit/10 GE high-speed networks.
Supports buffer management for burst traffic, congestion control, and low latency across diverse network scenarios.
Mature IPv6 solution.
In addition to IPv6 ping/telnet/SSH/FTP, supports IPv6 SNMP and HTTP management.
Supports DHCPv6 Client/Server/Snooping/Relay/Option18,37, IPv6 Source Guard, IPv6 Prefix Snooping, and ND Snooping.
Supports VRRPv3, IPv6 routing, and IPv6 Path MTU.
Effortless O&M management.
Supports SNMP v1/v2c/v3. In addition to in-band management, out-of-band SNMP management ports allow management independent of service traffic. WEB management enables flexible configuration and monitoring of individual devices.
Supports ZTP (Zero Touch Provisioning) for automatic deployment. After the provisioning server is deployed, devices boot and automatically obtain IP addresses and configuration for managed, configurable operation without on-site maintenance.
Some models feature front-facing power ports for single-side maintenance, simplified O&M, and flexible rack placement (against wall or back-to-back), saving rack space.
产品 | S5200-24S8T6X | S5200-24T6X | S5200-48T6X |
端口 | 24 x 100M/1G SFP ports, 8 x 10/100/1000BASE-T auto-negotiation Ethernet ports, 6 x 10GE SFP+ ports | 24 x 10/100/1000BASE-T auto-negotiation Ethernet ports, 6 x 10GE SFP+ ports | 48 x 10/100/1000BASE-T auto-negotiation Ethernet ports, 6 x 10GE SFP+ ports |
Switching capacity | 2.4/24Tbps | 2.4/24Tbps | 2.4/24Tbps |
Packet forwarding rate | 660Mpps | 660Mpps | 660Mpps |
Dimensions mm (W×D×H) | 440 x 360 x 43.6 | 440 x 300 x 43.6 | 440 x 300 x 43.6 |
Supported power types | Hot-swappable single/dual power | Built-in single/dual power | Built-in single/dual power |
Input voltage | AC: 220 V, rated 100–240 V; 50–60 Hz | ||
最大功耗 | 60w | 40w | 55w |
管理端口 | 1 x RJ45 Console port, 1 x SNMP out-of-band management port | ||
Environmental requirements | 工作温度：-10℃～50℃ 相对湿度：10%～90%（无凝露） | ||
Energy efficiency and environmental protection | Supports 802.3az Ethernet EEE 可支持温度风扇智能调速 | ||
Layer 2 features | Supports static, dynamic, and blackhole MAC | ||
SupportsMAC addressflappingManagement | |||
支持端口安全MAC和Number of MAC addresses目限制 | |||
Supports 4K VLANs | |||
Supports VLAN based on MAC/protocol/IP subnet/port | |||
Supports basic QinQ | |||
Supports selective QinQ | |||
Supports VLAN mapping (1:1/N:1) | |||
支持GVRP协议 | |||
Routing characteristics | IPv4 and IPv6 static routing | ||
Supports ECMP and policy-based routing | |||
Supports IPv4 dynamic routing protocols including RIP, OSPF, IS-IS, and BGP | |||
Supports IPv6 dynamic routing protocols including RIPng, OSPFv3, IS-ISv6, and BGP4+ | |||
组播 | Supports IGMP v1/v2/v3 Snooping，MLD Snooping v1/v2 | ||
支持基于端口和基于用户的立即离开 | |||
Supports IGMP MVR | |||
Supports IGMP VLAN replication | |||
Supports IGMP/MLD Filter | |||
Supports IGMP/MLD Proxy | |||
Supports PIM DM、PIM SM、PIM SSM | |||
QoS/ACL | Supports ingress/egress rate limiting per port with HCAR | ||
每端口支持8个队列，支持优先级映射 | |||
Supports flow classification and flow policy | |||
Supports SP, WRR, DRR, SP+WRR, SP+DRR queue scheduling modes | |||
Supports WRED congestion control | |||
支持端口/队列整形 | |||
L2/L3 OAM | Supports Ethernet OAM IEEE 802.3ah | ||
Supports L2CP | |||
Supports end-to-end CFM (IEEE 802.1ag) / ITU-T Y.1731 | |||
支持端口环回（loopback） | |||
Supports VRRPv2/VRRPv3 | |||
SupportsMAD forstacking | |||
SupportsBFD/Linktrace forStatic routing | |||
Supports failover | |||
虚拟化 | Supports stacking | ||
可靠性 | Supports manual aggregation and static LACP | ||
Supports ERPS ring protection protocol (ITU-T G.8032) | |||
Supports STP/RSTP/MSTP with BPDU protection, root protection, loop protection, TC protection/suppression | |||
Supports loop detection protection (LBD) | |||
支持端口备份，端口隔离 | |||
Security features | Supports AAA domain management, 802.1X, MAC, and bypass authentication*, Guest VLAN and Voice VLAN | ||
支持基于端口和VLAN的风暴抑制 | |||
Supports whitelist, port security MAC and MAC learning limit | |||
Supports IP and ARP attack defense: IPv4/v6 Source Guard, IPv6 prefix snooping, DAI, ND snooping | |||
Supports SSH V2.0，SFTP，HTTPS | |||
SupportsCPUprotection | |||
Supports 802.1X | |||
Supports RADIUS Certification | |||
Supports DoS attack prevention | |||
Supports ICMP attack prevention | |||
DHCP | Supports DHCPv4/v6 Client/Server | ||
Supports DHCPv4/v6 Snooping | |||
Supports DHCP v4/v6 Relay | |||
Supports DHCP v4/v6 Server | |||
Supports DHCPv4 option61、option82，DHCPv6 option18、option37 | |||
IPv6 features | Supports dual stack | ||
Supports IPv6 Ping, IPv6 Tracert, IPv6 Telnet, IPv6 SSH, IPv6 FTP/TFTP/SFTP | |||
Supports IPv6 SNMP | |||
Supports IPv6 RADIUS, IPv6 TACACS+, IPv6 NTP and SNTP | |||
Supports ND | |||
Supports DHCPv6 Client/Server/Snooping/Relay/Option18/37 | |||
Supports IPv6 Source Guard, IPv6 prefix snooping, ND snooping | |||
Supports IPv6 Path MTU* | |||
Supports VRRPv3* | |||
Management and maintenance | Supports CLI, SNMPv1/v2c/v3, web management, Telnet, SSH 2.0, and other management methods | ||
Supports LLDP/LLDP-MED | |||
支持本地和远程端口镜像，Supports flow mirroring | |||
支持System log、分级告警，支持断电告警Dying gasp功能 | |||
Supports RMON | |||
Supports optical module digital diagnostics | |||
Supports Virtual Cable Test (VCT) and UDLD | |||
Supports clock management with NTP | |||
Supports IPv4/v6 zero-touch ZTP, auto IP from DHCP, optional config/software download from FTP server | |||
SupportsUSBautomaticdeployment* | |||
Supports dual system | |||
SupportsBufferManagement | |||
SupportsCPU/Memory/Flashmonitoring | |||
支持硬件监控（温度/电源/风扇） | |||
标*Feature limited in current version; stay tuned for updates.
Gigabit switch access scenario
JX S2700, JX S5200, and JX S6600 series form small-to-medium campus network solutions. JX S5200 serves as an access switch with gigabit access and 10GE uplinks for higher bandwidth.
Chassis unit | |

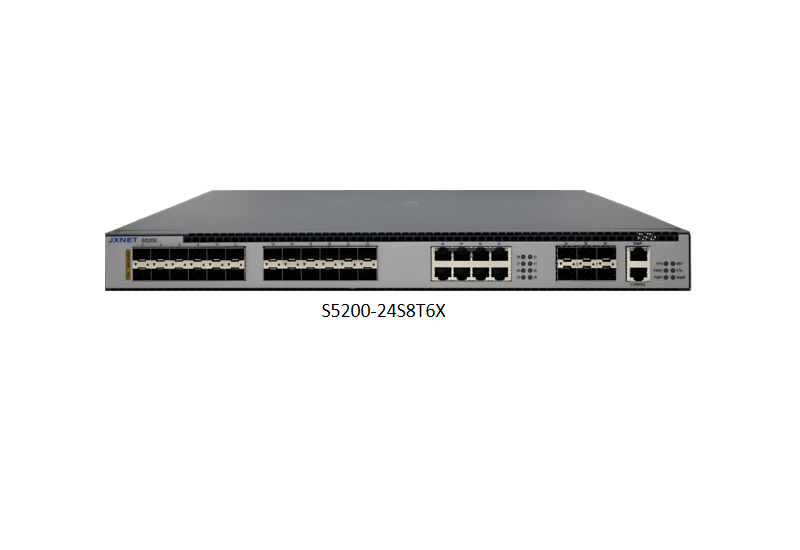

S5200-24S8T6X | 24 x 100M/1G SFP ports, 8 x 10/100/1000BASE-T auto-negotiation Ethernet ports, 6 x 10GE SFP+ ports. Supports Console port and SNMP management port. Single/dual power: AC/DC, dual AC, 220 V AC supply. |

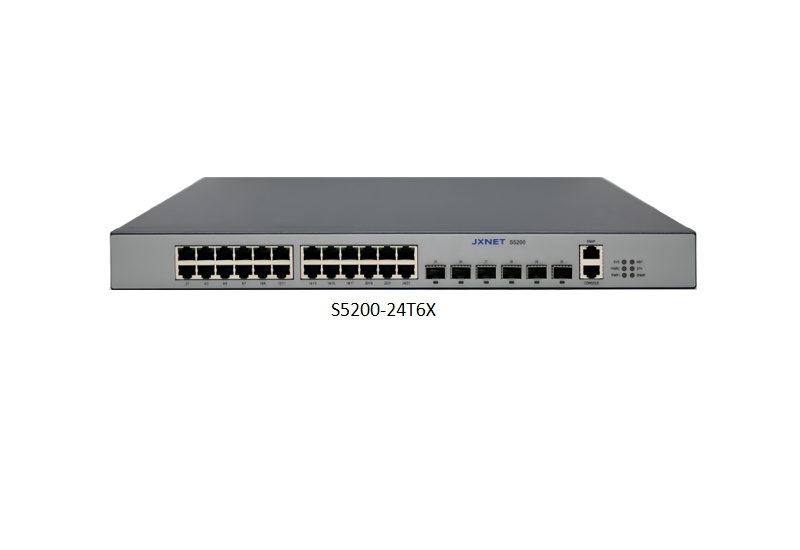

S5200-24T6X | 24 x 10/100/1000BASE-T auto-negotiation Ethernet ports, 6 x 10GE SFP+ ports. Supports Console port and SNMP management port. Single/dual power: AC/DC, dual AC, 220 V AC supply. |

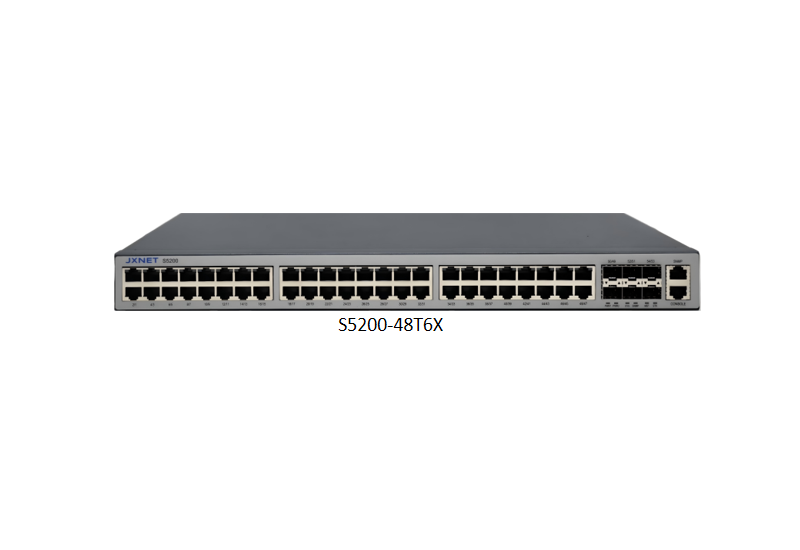

S5200-48T6X | 48 x 10/100/1000BASE-T auto-negotiation Ethernet ports, 6 x 10GE SFP+ ports. Supports Console port and SNMP management port. Single/dual power: AC/DC, dual AC, 220 V AC supply. |
