High Integration, Flexible Networking
1U height with hot-swappable fans and power supplies; modular design simplifies deployment and component replacement.
The system supports eight XG(S)-PON Combo interfaces, two 100 GE and 10 GE optical ports with wire-speed forwarding.
Provides bandwidth, voice, IPTV, and other service access for comprehensive industry applications.
Carrier-Grade Reliability
Supports 1+1 redundant power modules.
Supports Type B/C/D protection with carrier-grade switchover performance.
Supports STP, RSTP, MSTP, ERPS, LACP, and other protocols with switchover performance within 50 ms.
Rich feature set.
Supports dual IPv4/IPv6 stacks and comprehensive dynamic routing protocols.
Supports IGMP/MLD Snooping, Proxy, MVR, and controllable multicast.
Comprehensive QoS including dynamic bandwidth allocation, priority control, multiple traffic classification mechanisms, and multi-queue scheduling.
Comprehensive ACL including Layer 2, Layer 3, Layer 4, and user-defined ACLs.
Supports PON link encryption; GEM encryption can be enabled or disabled online on ONUs without interrupting service traffic.
Devices support point-to-point communication between ONUs with VLAN tag-based service data exchange.
Simplified O&M, easy management.
Supports CLI, Telnet, and other diverse management and maintenance methods.
Supports SNMP, RMON, and Syslog for daily network diagnostics and maintenance.
Green Energy Efficiency design.
Low power design with total system power consumption under 101 W.
Fans adjust speed intelligently based on temperature to extend fan life, reduce noise, and save energy.

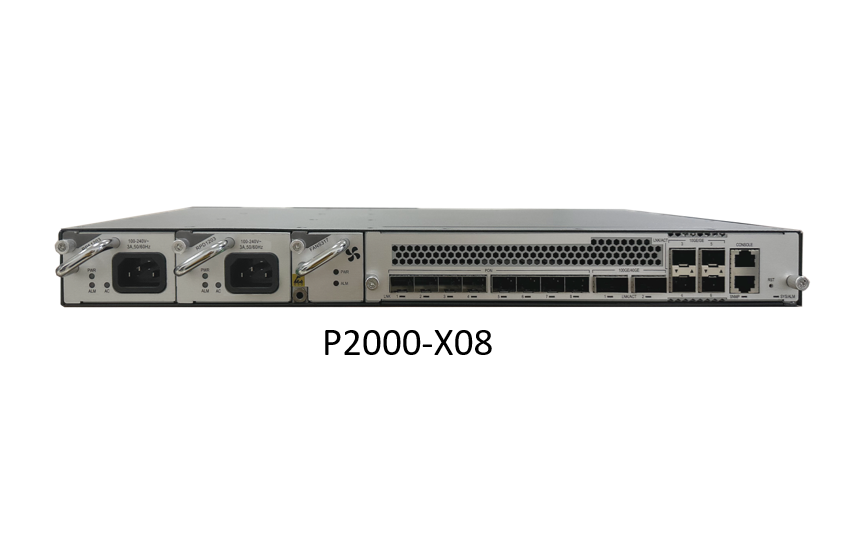

Item | P2000-X08 |
Number of slots | 4 |
Supervisor uplink blade | 1 |
Switching capacity | 680G |
Forwarding rate | 所有端口线速转发 |
100GE端口 | 2 |
10GE端口 | 4 |
XG(S)-PON Combo port | 8 |
PON split ratio | 1:384 |
风扇 | 1 |
电源 | AC: 100 V/220 V DC: -48 V/-60 V |
尺寸 | 440 mm (W) x 266 mm (D) x 44 mm (H) |
环境 | 工作温度：-10~55℃ 工作湿度：10%RH~90%RH，无凝结 |
重量 | ＜6kg |
最大功耗 | ＜101W |
MAC | Supports static, dynamic, and blackhole MAC |
SupportsMAC addressflappingManagement | |
支持端口安全MAC和Number of MAC addresses目限制 | |
VLAN | Supports VLAN based on MAC/protocol/IP subnet/port |
Supports Access, Trunk, and Hybrid modes | |
Supports QinQ, selective QinQ, and VLAN mapping (1:1/N:1) | |
组播 | Supports IGMP v1/v2/v3、IGMP v1/v2/v3 Snooping、MLD Snooping |
支持基于端口和基于用户的快速离开 | |
Supports IGMP MVR | |
Supports IGMP/MLD Proxy | |
QoS/ACL | Supports ingress/egress rate limiting per port with HCAR |
每端口支持8个队列，支持优先级映射 | |
支持端口/队列整形，Supports flow classification and flow policy | |
Supports SP, WRR, DRR, SP+WRR, SP+DRR queue scheduling modes | |
Supports WRED congestion control | |
可靠性 | Supports manual aggregation and static LACP |
Supports ERPS ring protection protocol (G.8032) | |
Supports STP/RSTP/MSTP | |
支持端口备份，端口隔离 | |
IP routing | Supports IPv4 and IPv6 static routing |
Supports IPv4 dynamic routing protocols including RIP, OSPF, IS-IS, and BGP | |
Supports IPv6 dynamic routing protocols including RIPng and OSPFv3 | |
IPv6 features | Supports dual stack |
Supports IPv6 Ping, IPv6 Tracert, IPv6 Telnet, IPv6 SSH, IPv6 FTP/TFTP/SFTP | |
Supports IPv6 SNMP | |
Supports IPv6 RADIUS, IPv6 TACACS+, IPv6 NTP and SNTP | |
Supports DHCPv6 Client/Server/Snooping/Relay/Option18/Option37 | |
DHCP | Supports DHCPv4/v6 Client/Server |
Supports DHCPv4/v6 Snooping | |
Supports DHCPv4/v6 Relay | |
Supports DHCPv4 option61、option82、DHCPv6 option18、option37 | |
Security features | Supports AAA domain management, 802.1X, and RADIUS authentication |
支持基于端口和VLAN的风暴抑制 | |
Supports whitelist, port security MAC learning limit | |
Supports IP and ARP attack defense: IPv4/v6 Source Guard, DAI, ND snooping | |
Supports SSH V2.0，SFTP，HTTPS | |
SupportsCPUprotection | |
Supports DoS/ICMP attack prevention | |
Loop protection | Supports STP, RSTP, and MSTP |
Supports ERPS（G.8032） | |
Management and maintenance | Supports CLI, SNMPv1/v2/v3, Telnet, SSH 2.0, WEB, and other management methods |
支持System log、分级告警，支持断电告警Dying gasp功能 | |
Supports unified user management with group/domain/time authorization | |
支持System log、分级告警 | |
支持设备在线状态监测，实现对关键元器件、系统温度、电源模块、风扇模块等进行监测 |
FTTH/FTTB network applications
In this topology, P2000 is deployed in the central office with Ethernet uplink and downstream splitters connecting ONUs. In FTTB, ONUs are placed in building corridors with cables distributing services to users. In FTTH, ONUs are typically at customer premises with various interfaces for different access needs.
Chassis unit | |
P2000-X08 | 1U fixed-form XPON OLT with 8 XG(S)-PON Combo interfaces, 2 x 100GE ports (QSFP28), 4 x 10GE ports (SFP+), dual power supplies |
