The JX P7000 series is Jiaxin's next-generation chassis OLT supporting GPON, XG-PON, XGS-PON, and smooth upgrade to 50G PON. Available in 2-, 7-, and 15-slot chassis (P7000-X2/X7/X15) with GPON, XGS-PON, Combo, GE, 10GE, and 100GE interfaces for ultra-broadband, green, intelligent all-optical access.
Ultra Bandwidth, High Density
The JX P7000 series delivers massive switching capacity and slot bandwidth exceeding 100G for smooth upgrade from 10G PON to 50G PON.
Service blades support 16 GPON/XGS-PON/XG(S)-PON interfaces per blade, with maximum capacity of 240 GPON / 240 XGS-PON / 240 XG(S)-PON.
Service and uplink blades support mixed insertion. All series support 100 GE interfaces with up to 184 x 100 GE.
Carrier-Grade Reliability
1+1 redundant main control blades (load-sharing mode).
1:1 redundant power modules; all blades support hot swap.
Supports TYPE B/C/D protection with carrier-grade switchover performance.
Supports STP, RSTP, MSTP, ERPS, LACP, and other protocols with switchover performance within 50 ms.
New architecture platform.
Distributed architecture enhances service awareness, quality monitoring, and related capabilities.
Domestic chip solution.
Rich feature set.
Supports dual IPv4/IPv6 protocol stacks, IPv6 static routing, RIPng, OSPFv3, BGP+, and IS-ISv6, along with rich IPv4-to-IPv6 transition technologies for standalone IPv6 networks and IPv4/IPv6 hybrid networks.
Comprehensive Layer 2/3 multicast protocols including PIM SM, PIM DM, PIM SSM, and IGMP Snooping.
Supports PON link encryption; GEM encryption can be enabled or disabled online on ONUs without interrupting service traffic.
Devices support point-to-point communication between ONUs with VLAN tag-based service data exchange.
Simplified O&M, easy management.
Supports CLI, Telnet, and other diverse management and maintenance methods.
Supports SNMP, RMON, and Syslog for daily network diagnostics and maintenance.
Supports Telemetry to collect device data in real time, accurately reflect network status, and quickly locate faults and root causes.
Green Energy Efficiency design.
Low power design for main control and service blades.
Fans adjust speed intelligently based on temperature to extend fan life, reduce noise, and save energy.
Model | P7000-X2 | P7000-X7 | P7000-X15 |
System switching capacity | 1.76Tbit/s | 9.6Tbit/s | 9.6Tbit/s |
Max bandwidth per service slot | 600Gbit/s | 600Gbit/s | 600Gbit/s |
System slot bandwidth | 2.4Tbit/s | 8.4Tbit/s | 13.6Tbit/s |
Number of slots | 7 | 13 | 21 |
Number of GPON service blades | 2 | 7 | 15 |
Number of XG-PON service blades | 2 | 7 | 15 |
Number of uplink blades | 2 | 7 | 15 |
Number of supervisor uplink ports | 1*100GE+2*10GE | 2*100GE+4*25GE/10GE | |
6*10GE | |||
Number of connected ONTs | 12288 | 43008 | 92160 |
Multicast subscribers | 12288 | 92160 | 92160 |
Number of MAC addresses | 128K | 256K | 256K |
IPv4 routing table | 48K | 48K | 48K |
IPv6 routing table | 6K | 24K | 24K |
ARP table | 16K | 32K | 32K |
Switching/forwarding latency | Sub-100-nanosecond | Sub-100-nanosecond | Sub-100-nanosecond |
Bit error rate at full load | 0 | 0 | 0 |
GPON端口数量 | 32 | 112 | 240 |
XGS-PON端口数量 | 32 | 112 | 240 |
XG(S)-PON Combo端口数量 | 32 | 112 | 240 |
10GE上联端口数量 | 12 | 176 | 368 |
100GE上联端口数量 | 2 | 88 | 184 |
Number of power supply blades | 2 | 2 | 2 |
Number of fan trays | 1 | 1 | 1 |
Number of connected ONUs | 4096 | 15360 | 30720 |
尺寸(宽×高×深) | 442mm*88.1mm*250mm | 440mm*266mm*237mm | 442mm*486mm*287mm |
整机功耗 | <500W | <1600W | <3000W |
环境 | -5~45℃ | -5~45℃ | -5~45℃ |
Layer 2 features | Supports static, dynamic, and blackhole MAC | ||
SupportsMAC addressflappingManagement | |||
支持端口安全MAC和Number of MAC addresses目限制 | |||
Supports VLAN based on MAC/protocol/IP subnet/port | |||
Supports Access, Trunk, and Hybrid modes | |||
Supports basic QinQ and selective QinQ | |||
Supports VLAN mapping (1:1/N:1) | |||
支持MVRP协议 | |||
Routing characteristics | Supports IPv4 dynamic routing protocols including RIP, OSPF, IS-IS, and BGP | ||
Supports IPv6 dynamic routing protocols including RIPng, OSPFv3, IS-ISv6, and BGP4+ | |||
组播 | Supports IGMP v1/v2/v3、IGMP v1/v2/v3 Snooping、MLD Snooping | ||
Supports PIM-DM, PIM-SM, PIM-SSM | |||
Supports fast leave mechanism | |||
Supports multicast policy and multicast QoS | |||
Supports multicast VLAN | |||
QoS/ACL | Supports Ingress/Egress ACL | ||
支持优先级映射，每端口支持8个队列 | |||
Supports combined flow classification based on Layer 2 protocol header, Layer 3/4 protocols, 802.1p priority, and more | |||
Supports ACL, CAR, Remark, Schedule, and other actions | |||
Supports SP, WRR, DRR, SP+WRR, SP+DRR queue scheduling modes | |||
Supports WRED, tail drop, and other congestion control | |||
Supports traffic shaping | |||
可靠性 | Supports manual aggregation and static LACP | ||
Supports ERPS ring protection protocol (ITU-T G.8032) | |||
Supports STP/RSTP/MSTP with BPDU protection, root protection, loop protection, TC protection/suppression | |||
Supports loop detection protection (LBD) | |||
支持端口备份，端口隔离 | |||
可靠性指标 | System availability 99.999%, annual downtime ≤5 minutes; System annual return rate < 1.5%; System MTTR < 2 hours; | ||
L2/L3 OAM | Supports Ethernet OAM IEEE 802.3ah | ||
Supports L2CP | |||
支持端口环回（loopback） | |||
Supports VRRPv2/VRRPv3 | |||
SupportsBFD/Linktrace forStatic routing | |||
Supports failover | |||
Security features | Supports AAA domain management, 802.1X, MAC, and bypass authentication, Guest VLAN and Voice VLAN | ||
支持基于端口和VLAN的风暴抑制 | |||
Supports whitelist, port security MAC and MAC learning limit | |||
Supports IP and ARP attack defense: IPv4/v6 Source Guard, DAI, ND snooping | |||
Supports SSH V2.0，SFTP，HTTPS | |||
SupportsCPUprotection | |||
Supports 802.1X | |||
Supports RADIUS Certification | |||
Supports DoS attack prevention | |||
Supports ICMP attack prevention | |||
IPv6 features | Supports dual stack | ||
Supports IPv6 Ping, IPv6 Tracert, IPv6 Telnet, IPv6 SSH, IPv6 FTP/TFTP/SFTP | |||
Supports IPv6 SNMP | |||
Supports IPv6 RADIUS, IPv6 TACACS+, IPv6 NTP and SNTP | |||
Supports DHCPv6 Client/Server/Snooping/Relay/Option18/37 | |||
Supports IPv6 Source Guard and ND snooping | |||
Supports VRRPv3 | |||
Loop protection | Supports STP (IEEE 802.1D), RSTP (IEEE 802.1W), and MSTP (IEEE 802.1S) | ||
支Supports BPDU protection, Root protection, and loop protection | |||
Supports ERPS Ethernet ring protection protocol (G.8032) | |||
Management and maintenance | Supports Console port login | ||
Supports SNMPv1/v2c/v3 | |||
Supports gRPC and Telemetry Stream traffic visualization* | |||
Supports unified user management with group/domain/time authorization | |||
支持System log、分级告警 | |||
Supports RMON | |||
Supports ZTP provisioning from USB or file server for zero on-site configuration and deployment | |||
支持设备在线状态监测机制，实现对包括关键元器件、系统温度、电源模块、风扇模块等 | |||
Features marked * are limited in current version; stay tuned for updates.
Network applications
In this topology, P7000 is deployed in the central office with Ethernet uplink and downstream splitters connecting ONUs. In FTTB, ONUs are placed in building corridors with cables distributing services to users. In FTTH, ONUs are typically at customer premises with various interfaces for different access needs.
Chassis unit | |

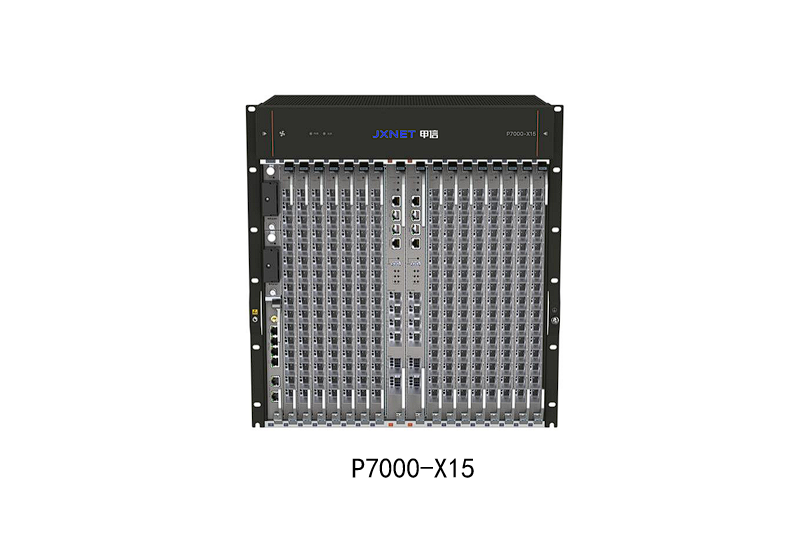

P7000-X15-DC/D | 11U chassis, P7000-X15 minimum config: chassis + dual DC power + fans |

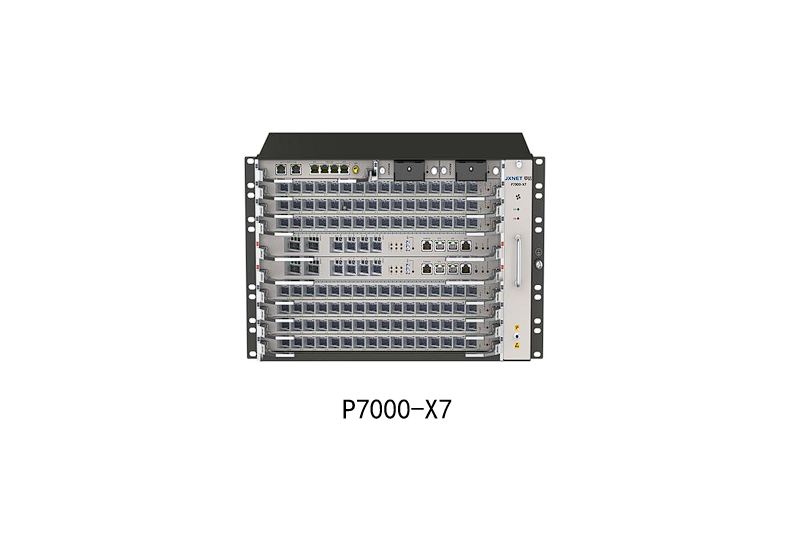

P7000-X7-DC/D | 6U chassis, P7000-X7 minimum config: chassis + dual DC power + fans |

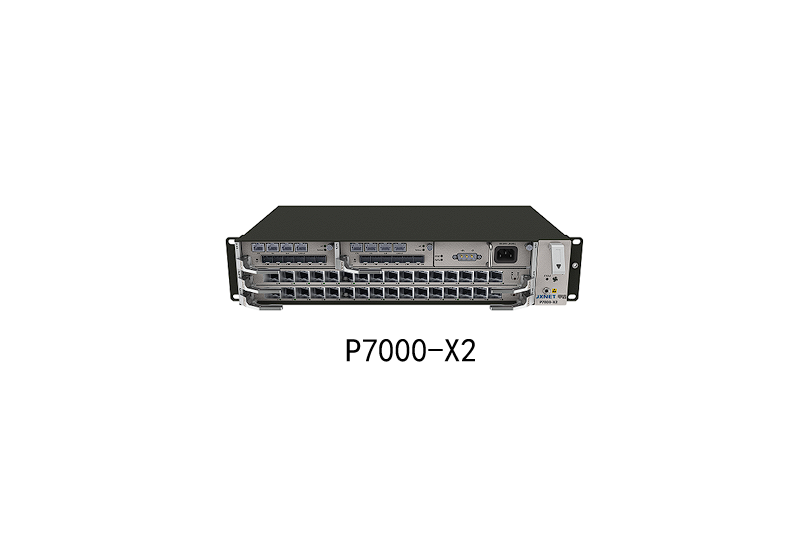

P7000-X2-AC/D | 2U chassis, P7000-X2 minimum config: chassis + dual AC power + fans |
P7000-X2-DC/D | 2U chassis, P7000-X2 minimum config: chassis + dual DC power + fans |
Supervisor unit | |
P7000-SMCA | P7000-X15 and P7000-X7 supervisor cards support 2 x 100GE + 4 x 25GE/10GE uplink interfaces |
P7000-SMUA | P7000-X2 supervisor card, supports 6 x 10GE |
P7000-SMUB | P7000-X2 supervisor card, supports 1 x 100GE + 2 x 10GE |
Service processing unit | |
P7000-XCHB | 16-port XGS-PON Combo service line card |
P7000-XE24 | 24-port 10GE uplink line card |
Power supply unit | |
P7000-RPD2341-48S48 | P7000-X7 and P7000-X15 DC power supplies |
P7000-RPD2101-48S48 | P7000-X2 DC power supply |
