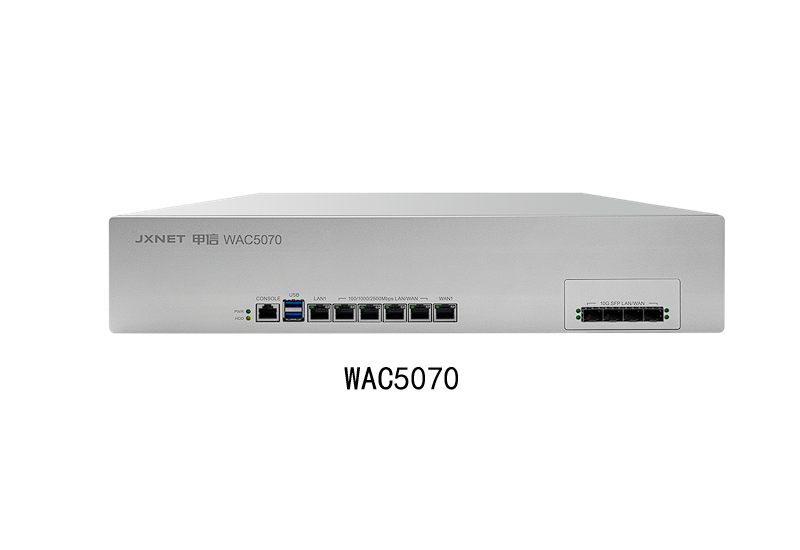

WAC5070 Wireless Controller

Multi-WAN and Multi-WAN Port Load Balancing

The JX WAC5070 supports PPPoE/DHCP/static IP/PPTP access and multiple carrier lines from China Telecom, China Unicom, and China Mobile.

Supports multi-WAN with load balancing, link backup, and bandwidth bonding for more stable, faster connectivity.

The WAC5070 supports policy-based routing by IP address, MAC address, network interface, domain name, and other rules.

Cloud Platform Access and Authentication

The JX WAC5070 supports cloud platform access in gateway and AC modes. In gateway mode, it supports multiple authentication methods including user authentication and SMS authentication for a more professional network layout.

AP management.

The WAC5070 wireless controller supports management of 802.11a/b/g/n/ac/ac wave2/ax/be APs. Used with our Wi-Fi 7 (802.11be) APs, it breaks through traditional wireless communication limitations and greatly improves user experience in high-density wireless scenarios.

Zero-touch provisioning and grouping: Add a zero-touch group before connecting APs; APs automatically receive the corresponding configuration without extra setup. Different groups can be added across the network with configuration pushed to APs in each group.

Built-in smart channel analyzer: The WAC5070 includes a smart channel analyzer to help APs detect and analyze neighboring wireless channels so APs can select the least interfered channel for stable coverage.

Automatically assigns IP addresses to wireless APs.

The WAC5070 has a built-in DHCP server that automatically assigns IP addresses to wireless APs, avoiding conflicts and saving manual configuration effort.

Intelligent Traffic Control

Simple, worry-free Intelligent Traffic Control—enable with a single switch.

Fairness and latency control algorithms based on traffic size and traffic feature identification.

Balances download, video, gaming, and web browsing—fast downloads, stable gaming latency, and quick page loads.

Supports up to 180 external network links for access and load distribution on a single device.

Supports IP-based and session-based load distribution with bandwidth bonding without disconnections.

Powerful traffic distribution rules based on IP address, time, port, routing table, application, and weighted load balancing meet diverse distribution needs.

Under bandwidth constraints, application priority ensures games and web browsing come first—even heavy P2P downloads won't degrade the user experience.

Maximum traffic per user on each link can be precisely limited by IP address, authenticated user, user level, department, and time conditions.

Maximum TCP/UDP connections per user can be precisely limited by IP address, authenticated user, user level, department, and time conditions.

The Layer 7 firewall module can permit or block traffic based on address, user, level, department, time, destination address, and destination port.

Supports behavior management with cloud services, P2P, VPN, and other upload/download traffic distribution statistics.

Supports P2P application control including blocking and rate limiting.

Supports traffic policy distribution by source IP, destination IP, and time period.

Policy control for specified applications, ports, and external network links.

Also includes port mapping, source NAT, and internal DDoS protection.

IP-MAC binding defends against internal ARP attacks.

Supports real-time speed monitoring, VPN, static IP, DDNS, and more.

表1硬件参数

Table 2 Software Features

Features marked * are limited in current version; stay tuned for updates.
