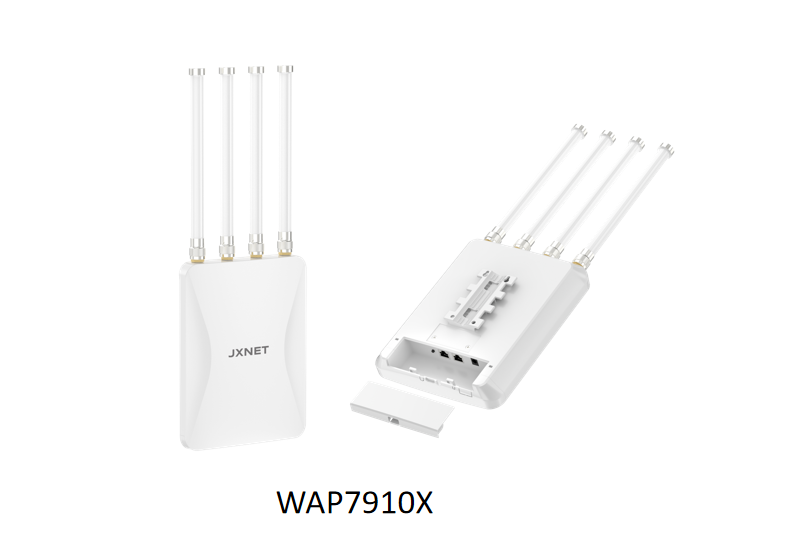

Operating Mode
The WAP7910X uses an integrated multi-mode design to flexibly switch Operating Mode based on requirements, reducing deployment cost.
Fat AP: The WAP7910X supports Fat AP mode, allowing the AP to operate independently without a wireless controller. Ideal for small networks such as homes and temporary venues, users can flexibly choose installation locations and deploy quickly without complex planning or additional equipment.
Fit AP: The WAP7910X supports Fit AP mode and works with a wireless controller for batch AP deployment and large-scale wireless networking with centralized AP management. Suitable for conference rooms, campuses, hospitals, and similar scenarios with batch deployment, seamless roaming, and unified security policies.
Wireless features.
Dual-band 8 SSIDs with Chinese SSIDs, hidden SSIDs, MAC whitelists, and band steering (5 GHz preferred).
Encryption: OPEN, WPA/WPA2-PSK (TKIP/AES), WPA3-PSK (AES).
Enterprise features: QoS (WMM), client isolation, client count limits, DHCP service, firewall, and PPPoE dial-up.
WiFi scheduled shutdown for energy savings and improved security.
Network scalability.
Supports built-in/external DHCP servers and cloud platform integration for large-scale networking.
One 2.5G adaptive WAN port and one GE adaptive LAN port for multi-device access.
Convenient management features.
One-touch reset: press and hold Reset for 6–10 seconds to restore factory defaults.
Remote management: firmware upgrade, configuration backup/restore, scheduled reboot, and system logs.
Status visualization: real-time display of wireless rate, uptime, device information, and other key data.
Protection capability.
IP65 rating for outdoor deployment.
Lightning protection board component enhances surge resistance.
ESD protection: air discharge ±15 kV, contact discharge ±8 kV.
Surge protection: common mode 6 kV, differential mode 2 kV.
硬件规格
属性 | WAP7910X | ||||
尺寸 | 230mm × 180mm × 47.1mm | ||||
以太网接口 | 1 x 10/100/1000/2500 Mbps auto-negotiation WAN port,SupportsPoE 48V Power supply 1 x 10/100/1000 Mbps auto-negotiation LAN port | ||||
2.4 GHz operating band | 2.4GHz～2.484GHz | ||||
2.4G WIFI传输协议 | 802.11b/g/n/ax/be | ||||
5 GHz operating band | 5.150GHz～5.850GHz | ||||
5G WIFI传输协议 | 802.11a/n/ac/ax/be | ||||
Maximum rate | 2.4 GHz up to 688 Mbps; 5 GHz up to 4323 Mbps. Max system access rate 5 Gbps. | ||||
Maximum wireless clients | 128 | ||||
供电 | 802.3at | ||||
DC2.0 12V/2A | |||||
Built-in antenna | 2 x 2.4 GHz & 5 GHz omnidirectional antennas, 6 dBi gain each 2 x 5 GHz antennas, 6 dBi gain each | ||||
2.4G transmit power | 802.11b | 11M | 24±2dBm | 1M | 24±2dBm |
802.11g | 54M | 23±2dBm | 6M | 24±2dBm | |
802.11n HT20 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
802.11n HT40 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
802.11ax HE20 | MCS11 | 20±2dBm | MCS0 | 24±2dBm | |
802.11ax HE40 | MCS11 | 20±2dBm | MCS0 | 24±2dBm | |
802.11be EHT20 | MCS13 | 20±2dBm | MCS0 | 24±2dBm | |
802.11be EHT40 | MCS13 | 20±2dBm | MCS0 | 24±2dBm | |
5G transmit power | 802.11a | 54M | 21±2dBm | 6M | 23±2dBm |
802.11n HT20 | MCS7 | 20±2dBm | MCS0 | 23±2dBm | |
802.11n HT40 | MCS7 | 20±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT20 | MCS7 | 19±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT40 | MCS7 | 19±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT80 | MCS9 | 19±2dBm | MCS0 | 23±2dBm | |
802.11ax HE20 | MCS11 | 18±2dBm | MCS0 | 23±2dBm | |
802.11ax HE40 | MCS11 | 18±2dBm | MCS0 | 23±2dBm | |
802.11ax HE80 | MCS11 | 18±2dBm | MCS0 | 23±2dBm | |
802.11ax HE160 | MCS11 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT20 | MCS13 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT40 | MCS13 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT80 | MCS13 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT160 | MCS13 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT240 | MCS13 | 18±2dBm | MCS0 | 23±2dBm | |
2.4G receive sensitivity | 802.11b | 11M | -89dBm | 1M | -95dBm |
802.11g | 54M | -75dBm | 6M | -92dBm | |
802.11n HT20 | MCS7 | -72dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -70dBm | MCS0 | -86dBm | |
802.11ax HE20 | MCS11 | -62dBm | MCS0 | -88dBm | |
802.11ax HE40 | MCS11 | -60dBm | MCS0 | -86dBm | |
802.11be EHT20 | MCS13 | -60dBm | MCS0 | -86dBm | |
802.11be EHT40 | MCS13 | -60dBm | MCS0 | -86dBm | |
5G receive sensitivity | 802.11a | 54M | -75dBm | 6M | -92dBm |
802.11n HT20 | MCS7 | -72dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -70dBm | MCS0 | -86dBm | |
802.11ac VHT20 | MCS7 | -65dBm | MCS0 | -88dBm | |
802.11ac VHT40 | MCS7 | -62dBm | MCS0 | -86dBm | |
802.11ac VHT80 | MCS9 | -60dBm | MCS0 | -84dBm | |
802.11ax HE20 | MCS11 | -60dBm | MCS0 | -90dBm | |
802.11ax HE40 | MCS11 | -58dBm | MCS0 | -88dBm | |
802.11ax HE80 | MCS11 | -54dBm | MCS0 | -84dBm | |
802.11ax HE160 | MCS11 | -54dBm | MCS0 | -82dBm | |
802.11be EHT20 | MCS13 | -54dBm | MCS0 | -86dBm | |
802.11be EHT40 | MCS13 | -52dBm | MCS0 | -84dBm | |
802.11be EHT80 | MCS13 | -50dBm | MCS0 | -82dBm | |
802.11be EHT160 | MCS13 | -48dBm | MCS0 | -80dBm | |
802.11be EHT240 | MCS13 | -48dBm | MCS0 | -80dBm | |
2.4G EVM | 802.11b:≤-10 dB； 802.11g: ≤-25 dB； 802.11n:≤-28 dB； 802.11ax:≤-35 dB； 802.11be: ≤-38 dB； | ||||
5G EVM | 802.11a:≤-25 dB； 802.11n: ≤-28 dB； 802.11ac:≤-32 dB； 802.11ax:≤-35 dB; 802.11be: ≤-38 dB； | ||||
Frequency offset (ppm) | ±20ppm | ||||
Reset/factory restore | Supports reset button (hold 6–10 seconds for factory reset) | ||||
指示灯 | Wi-Fi: when 2.4G/5G is enabled (solid green; blinks on traffic; off when Wi-Fi disabled) LAN: Gigabit LAN indicator (green; off when disconnected, solid when connected, blinks on traffic) WAN: Gigabit WAN indicator (green; off when disconnected, solid when connected, blinks on traffic) SYS: System LED, blinks when system normal PWR: Power indicator (green solid when on, off when off) | ||||
Protection rating | IP65 | ||||
工作温度 | -30°C ~ 55°C | ||||
存储温度 | -40°C ~ 70°C | ||||
工作湿度 | 5%–95% (non-condensing) | ||||
存储湿度 | 5%–95% (non-condensing) | ||||
最大功耗 | < 22W | ||||
ESD testing | Air discharge ±8 kV, contact discharge ±6 kV | ||||
浪涌 | Common-mode 2 kV, differential-mode 1 kV | ||||
重量 | 1.1kg | ||||
Software features
首页 | Operating mode: Fat AP mode and Fit AP mode |
Wireless AP download rate, upload rate, uptime | |
设备信息，设备描述，内网信息，WIFI信息 | |
Supported modes | Gateway mode: device connects to WAN via static IP, DHCP, or PPPoE for Internet access |
AP mode: device provides wireless coverage to clients and connects via Ethernet to another router for WAN access | |
Repeater mode: device connects wirelessly to another online AP to extend wireless coverage. | |
无线功能 | SSID broadcast |
SSID count: 4 (2.4 GHz) + 4 (5 GHz), Chinese SSIDs supported | |
Hidden SSID | |
Wireless encryption: OPEN, WPA/WPA2-PSK-TKIP/AES | |
Wireless MAC filtering: whitelist supported | |
Band steering (5 GHz preferred) | |
Wi-Fi scheduled shutdown | |
Client isolation: inter-SSID and intra-AP isolation | |
Transmit power settings | |
Wireless client limit | |
QoS：WMM | |
Network features | Connection: static address, from management server, or from gateway |
DHCP server: built-in or external DHCP server | |
Cloud platform server | |
Firewall features | |
PPPoE: supports PPPoE dial-up | |
设备管理 | Backup configuration |
Restore configuration | |
Factory reset | |
Restart includes scheduled and immediate restart | |
Firmware upgrade | |
Time management includes system display time and time synchronization | |
System log | |
Fat/Fit AP mode switching |
