Operating Mode
The WAP7530 uses an integrated multi-mode design to flexibly switch Operating Mode based on requirements, reducing deployment cost.
Fat AP: The WAP7530 supports Fat AP mode, allowing the AP to operate independently without a wireless controller. Ideal for small networks such as homes and temporary venues, users can flexibly choose installation locations and deploy quickly without complex planning or additional equipment.
Fit AP: The WAP7530 supports Fit AP mode and works with a wireless controller for batch AP deployment and large-scale wireless networking with centralized AP management. Suitable for conference rooms, campuses, hospitals, and similar scenarios with batch deployment, seamless roaming, and unified security policies.
Wireless management.
Supports 12 SSIDs with hidden SSIDs and Chinese naming.
Security assurance.
WPA/WPA2/WPA3 encryption and MAC address whitelist for effective defense against unauthorized access.
Wi-Fi scheduled shutdown for energy savings and improved security.
Performance fully upgraded.
Supports wider channels up to 320 MHz.
Supports 4096-QAM modulation for improved transmission efficiency.
Supports MO (Multi-link Operation) for multi-link connectivity with multi-band concurrency for a better user experience.
Supports 10 Gbps optical and 2.5 Gbps electrical interfaces to fully utilize device performance.
Convenient management features.
One-touch reset: press and hold Reset for 6–10 seconds to restore factory defaults.
Remote management: firmware upgrade, configuration backup/restore, scheduled reboot, and system logs.
Status visualization: real-time display of wireless rate, uptime, device information, and other key data.
硬件规格

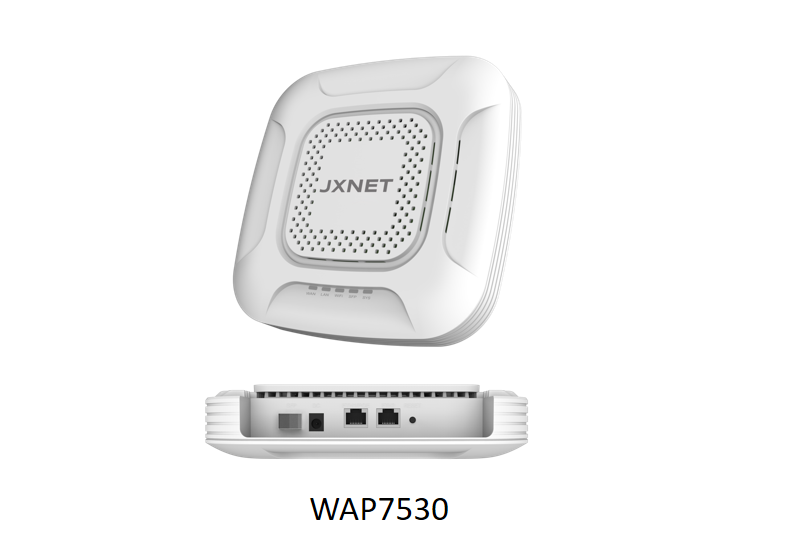

属性 | WAP7530 | ||||
尺寸 | 208mm × 208mm × 46mm | ||||
以太网接口 | 1 x 10 Gbps SFP+ optical port 1 x 10/100/1000/2500 Mbps auto-negotiation WAN port, 802.3bt input supported 1 x 10/100/1000/2500 Mbps auto-negotiation LAN port | ||||
2.4 GHz operating band | 2.4GHz～2.484GHz | ||||
2.4G WIFI传输协议 | 802.11 b / g / n / ax / be | ||||
5 GHz operating band | 5.1GHz～5.8GHz | ||||
5G WIFI传输协议 | 802.11 a / n / ac / ax / be | ||||
空间流 | 2×2（2.4GHz）+2×2（5.1GHz）+2×2（5.8GHz） | ||||
Maximum rate | 2.4 GHz delivers up to 688 Mbps; 5.1 GHz up to 2882 Mbps; 5.8 GHz up to 2882 Mbps. Total ~6.45 Gbps. | ||||
Maximum wireless clients | 384 | ||||
供电 | 802.3at/bt | ||||
DC2.0 54V/1A | |||||
Built-in antenna | 2 x 2.4 GHz antennas, 4 dBi gain each 4 x 5 GHz antennas, 4 dBi gain each | ||||
2.4 GHz transmit power | 802.11b | 11M | 24±2dBm | 1M | 24±2dBm |
802.11g | 54M | 23±2dBm | 6M | 24±2dBm | |
802.11n HT20 | MCS7 | 23±2dBm | MCS0 | 24±2dBm | |
802.11n HT40 | MCS7 | 22±2dBm | MCS0 | 24±2dBm | |
802.11ax HE20 | MCS11 | 21±2dBm | MCS0 | 24±2dBm | |
802.11ax HE40 | MCS11 | 21±2dBm | MCS0 | 24±2dBm | |
802.11be EHT20 | MCS13 | 20±2dBm | MCS0 | 24±2dBm | |
802.11be EHT40 | MCS13 | 20±2dBm | MCS0 | 24±2dBm | |
5 GHz transmit power | 802.11a | 54M | 21±2dBm | 6M | 23±2dBm |
802.11n HT20 | MCS7 | 20±2dBm | MCS0 | 23±2dBm | |
802.11n HT40 | MCS7 | 20±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT20 | MCS8 | 19±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT40 | MCS9 | 18±2dBm | MCS0 | 23±2dBm | |
802.11ac VHT80 | MCS9 | 18±2dBm | MCS0 | 23±2dBm | |
802.11ax HE20 | MCS11 | 18±2dBm | MCS0 | 23±2dBm | |
802.11ax HE40 | MCS11 | 18±2dBm | MCS0 | 23±2dBm | |
802.11ax HE80 | MCS11 | 18±2dBm | MCS0 | 23±2dBm | |
802.11ax HE160 | MCS11 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT20 | MCS13 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT40 | MCS13 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT80 | MCS13 | 18±2dBm | MCS0 | 23±2dBm | |
802.11be EHT160 | MCS13 | 17±2dBm | MCS0 | 23±2dBm | |
2.4 GHz receive sensitivity | 802.11b | 11M | -89dBm | 1M | -95dBm |
802.11g | 54M | -75dBm | 6M | -92dBm | |
802.11n HT20 | MCS7 | -72dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -70dBm | MCS0 | -86dBm | |
802.11ax HE20 | MCS11 | -62dBm | MCS0 | -88dBm | |
802.11ax HE40 | MCS11 | -60dBm | MCS0 | -86dBm | |
802.11be EHT20 | MCS13 | -62dBm | MCS0 | -88dBm | |
802.11be EHT40 | MCS13 | -60dBm | MCS0 | -86dBm | |
5 GHz receive sensitivity | 802.11a | 54M | -72dBm | 6M | -92dBm |
802.11n HT20 | MCS7 | -68dBm | MCS0 | -88dBm | |
802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm | |
802.11ac VHT20 | MCS8 | -65dBm | MCS0 | -88dBm | |
802.11ac VHT40 | MCS9 | -58dBm | MCS0 | -86dBm | |
802.11ac VHT80 | MCS9 | -58dBm | MCS0 | -84dBm | |
802.11ax HE20 | MCS11 | -60dBm | MCS0 | -90dBm | |
802.11ax HE40 | MCS11 | -58dBm | MCS0 | -88dBm | |
802.11ax HE80 | MCS11 | -54dBm | MCS0 | -84dBm | |
802.11ax HE160 | MCS11 | -51dBm | MCS0 | -82dBm | |
802.11be EHT20 | MCS13 | -54dBm | MCS0 | -86dBm | |
802.11be EHT40 | MCS13 | -52dBm | MCS0 | -84dBm | |
802.11be EHT80 | MCS13 | -50dBm | MCS0 | -82dBm | |
802.11be EHT160 | MCS13 | -48dBm | MCS0 | -80dBm | |
2.4GHz EVM | 802.11b: ≤-10 dB； 802.11g: ≤-25 dB； 802.11n: ≤-28dB； 802.11ax: ≤-35 dB; 802.11be: ≤-38 dB； | ||||
5GHz EVM | 802.11a: ≤-25 dB； 802.11n: ≤-28 dB； 802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB; 802.11be: ≤-38 dB； | ||||
6GHz EVM | 802.11a: ≤-25 dB； 802.11n: ≤-28 dB； 802.11ac: ≤-32 dB; 802.11ax: ≤-35 dB; 802.11be: ≤-38 dB； | ||||
Frequency offset (ppm) | ±20ppm | ||||
Reset/factory restore | Supports Reset button (click toggles indicator; hold 6–10 seconds for factory default) | ||||
Status indicators | WAN: Green single LED; LAN: Green single LED; Wi-Fi: Red/green/blue tri-color; SFP: Green; SYS: Red/green dual-color; | ||||
工作温度 | -10°C ~ 55°C | ||||
存储温度 | -40°C ~ 70°C | ||||
工作湿度 | 5%–95% (non-condensing) | ||||
存储湿度 | 5%–95% (non-condensing) | ||||
最大功耗 | < 27W | ||||
ESD testing | Air discharge ±8 kV, contact discharge ±6 kV | ||||
浪涌 | Common-mode 2 kV, differential-mode 1 kV | ||||
重量 | 0.55kg | ||||
Software features
首页 | Operating mode: Fat AP mode and Fit AP mode |
Wireless AP download rate, upload rate, uptime | |
设备信息，设备描述，内网信息，WIFI信息 | |
Supported modes | Gateway mode: device connects to WAN via static IP, DHCP, or PPPoE for Internet access |
AP mode: device provides wireless coverage to clients and connects via Ethernet to another router for WAN access | |
Repeater mode: device connects wirelessly to another online AP to extend wireless coverage. | |
无线功能 | SSID broadcast |
SSID count: 4 (2.4 GHz) + 4 (5.1 GHz) + 4 (5.8 GHz), Chinese SSIDs supported | |
Supports MLO | |
Hidden SSID | |
Wireless encryption: OPEN, WPA/WPA2-PSK-TKIP/AES、WPA3PSK-AES | |
Wireless MAC filtering: whitelist supported | |
Wi-Fi scheduled shutdown | |
Client isolation: inter-SSID and intra-AP isolation | |
Transmit power settings | |
Wireless client limit | |
QoS：WMM | |
Network features | Connection: static address, from management server, or from gateway |
DHCP server: built-in or external DHCP server | |
Cloud platform server | |
Firewall features | |
PPPoE: supports PPPoE dial-up | |
设备管理 | Backup configuration |
Restore configuration | |
Factory reset | |
Restart includes scheduled and immediate restart | |
Firmware upgrade | |
Time management includes system display time and time synchronization | |
System log | |
Fat/Fit AP mode switching |
