Operating Mode

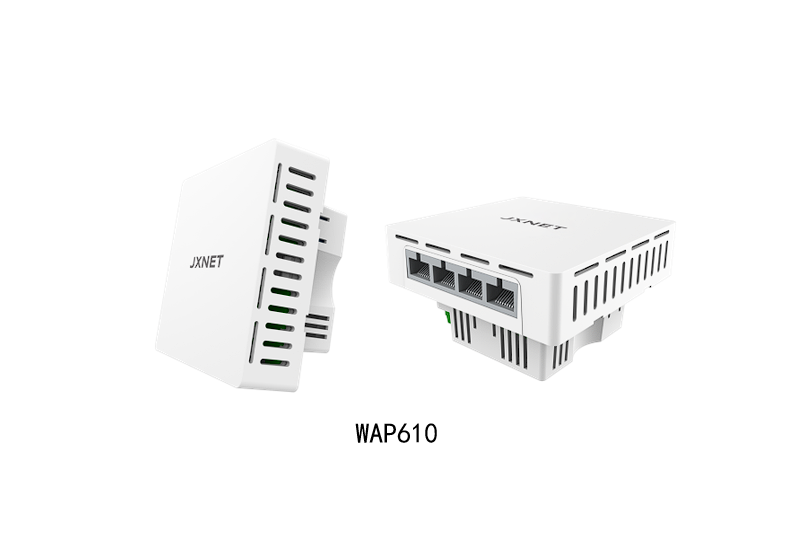

The WAP610 uses an integrated multi-mode design to flexibly switch Operating Mode based on requirements, reducing deployment cost.
Fat AP: The WAP610 supports Fat AP mode, allowing the AP to operate independently without a wireless controller. Ideal for small networks such as homes and temporary venues, users can flexibly choose installation locations and deploy quickly without complex planning or additional equipment.
Fit AP: The WAP610 supports Fit AP mode and works with a wireless controller for batch AP deployment and large-scale wireless networking with centralized AP management. Suitable for enterprise offices, campus dormitories, and similar scenarios with batch deployment, seamless roaming, and unified security policies.
Wireless management.
Supports 8 SSIDs (4 on 2.4 GHz and 4 on 5 GHz) with hidden SSIDs and Chinese naming.
Band steering (5 GHz preferred), client isolation, transmit power adjustment, and other wireless experience optimizations.
Security assurance.
WPA/WPA2 encryption and MAC address whitelist (100 entries) for effective defense against unauthorized access.
WiFi scheduled shutdown for energy savings and improved security.
Network scalability.
Supports built-in/external DHCP servers and cloud platform integration for large-scale networking.
Four gigabit LAN ports and one gigabit WAN port for multi-device access.
Convenient management features.
One-touch reset: press and hold Reset for 6–10 seconds to restore factory defaults.
Remote management: firmware upgrade, configuration backup/restore, scheduled reboot, and system logs.
Status visualization: real-time display of wireless rate, uptime, device information, and other key data.
表1硬件规格
属性 | WAP610 | ||||
尺寸 | 86mm*86mm*48mm | ||||
以太网接口 | WAN: 1 x 10/100/1000 Mbps auto-negotiation WAN port, PoE 48 V power supported; | ||||
2.4 GHz operating band | 2.4GHz～2.484GHz | ||||
2.4G WIFI传输协议 | 802.11b/g/n/ax | ||||
5 GHz operating band | 5.150GHz～5.850GHz | ||||
5G WIFI传输协议 | 802.11a/n/ac/ax | ||||
Maximum rate | 2.4 GHz up to 574 Mbps; 5 GHz up to 2402 Mbps. | ||||
Maximum wireless clients | 128 | ||||
POE | 802.3af | ||||
Built-in antenna | Built-in 2 ceramic dual-band antennas: 2.4G 3 dBi, 5G 3.3 dBi | ||||
2.4G transmit power | 802.11b | 11M | 19±2dBm | 1M | 19±2dBm |
802.11g | 54M | 16±2dBm | 6M | 18±2dBm | |
802.11n HT20 | MCS7 | 14.5±2dBm | MCS0 | 16.5±2dBm | |
802.11n HT40 | MCS7 | 14.5±2dBm | MCS0 | 16.5±2dBm | |
802.11ax HT20 | MCS11 | 13±2dBm | MCS0 | 16.5±2dBm | |
802.11ax HT40 | MCS11 | 13±2dBm | MCS0 | 16.5±2dBm | |
5G transmit power | 802.11a | 54M | 16±2dBm | 6M | 18.5±2dBm |
802.11n HT20 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | |
802.11n HT40 | MCS7 | 15±2dBm | MCS0 | 17±2dBm | |
802.11ac HT20 | MCS7 | 14.5±2dBm | MCS0 | 17±2dBm | |
802.11ac HT40 | MCS7 | 14.5±2dBm | MCS0 | 17±2dBm | |
802.11ac HT80 | MCS9 | 14±2dBm | MCS0 | 16.5±2dBm | |
802.11ax HT20 | MCS11 | 13.5±2dBm | MCS0 | 17±2dBm | |
802.11ax HT40 | MCS11 | 13.5±2dBm | MCS0 | 17±2dBm | |
802.11ax HT80 | MCS11 | 13±2dBm | MCS0 | 16.5±2dBm | |
802.11ax HT160 | MCS11 | 11.5±2dBm | MCS0 | 15±2dBm | |
2.4G receive sensitivity | 802.11b | 11M | -76dBm | 1M | -82dBm |
802.11g | 54M | -65dBm | 6M | -82dBm | |
802.11n HT20 | MCS7 | -64dBm | MCS0 | -82dBm | |
802.11n HT40 | MCS7 | -61dBm | MCS0 | -79dBm | |
802.11ax HT20 | MCS11 | -52dBm | MCS0 | -82dBm | |
802.11ax HT40 | MCS11 | -49dBm | MCS0 | -79dBm | |
5G receive sensitivity | 802.11a | 54M | -65dBm | 6M | -82dBm |
802.11n HT20 | MCS7 | -64dBm | MCS0 | -82dBm | |
802.11n HT40 | MCS7 | -61dBm | MCS0 | -79dBm | |
802.11ac HT20 | MCS7 | -59dBm | MCS0 | -82dBm | |
802.11ac HT40 | MCS7 | -54dBm | MCS0 | -79dBm | |
802.11ac HT80 | MCS9 | -51dBm | MCS0 | -76dBm | |
802.11ax HT20 | MCS11 | -52dBm | MCS0 | -82dBm | |
802.11ax HT40 | MCS11 | -49dBm | MCS0 | -79dBm | |
802.11ax HT80 | MCS11 | -46dBm | MCS0 | -76dBm | |
802.11ax HT160 | MCS11 | -43dBm | MCS0 | -73dBm | |
2.4G EVM | 802.11b:≤-10 dB ；802.11g:≤-25 dB ；802.11n:≤-28dB ; 802.11ax:≤-35 dB | ||||
5G EVM | 802.11a:≤-25 dB ；802.11n:≤-28 dB ；802.11ac:≤-32 dB; 802.11ax:≤-35 dB | ||||
Frequency offset (ppm) | ±20ppm | ||||
Reset/factory restore | Supports reset button (hold 6–10 seconds for factory reset) | ||||
指示灯 | Supports SYS LED | ||||
工作温度 | -10°C ~ 40°C | ||||
存储温度 | -40°C ~ 70°C | ||||
工作湿度 | 5%–95% (non-condensing) | ||||
存储湿度 | 5%–95% (non-condensing) | ||||
最大功耗 | < 14W | ||||
ESD testing | Air discharge ±8 kV, contact discharge ±6 kV | ||||
浪涌 | Common-mode 1 kV, differential-mode 0.5 kV | ||||
重量 | 0.28kg | ||||
Table 2 Software Features
首页 | Operating mode: Fat AP mode and Fit AP mode |
Wireless AP download rate, upload rate, uptime | |
设备信息，设备描述，内网信息，WIFI信息 | |
AP mode: device provides wireless coverage to clients and connects via Ethernet to another router for WAN access | |
无线功能 | SSID broadcast |
SSID count: 4 (2.4 GHz) + 4 (5 GHz), Chinese SSIDs supported | |
Hidden SSID | |
Wireless encryption: OPEN, WPA/WPA2-PSK-TKIP/AES、WPA3PSK-AES | |
Wireless MAC filtering: whitelist supported (100) | |
Band steering (5 GHz preferred) | |
Wi-Fi scheduled shutdown | |
Client isolation: inter-SSID and intra-AP isolation | |
Transmit power settings | |
Wireless client limit | |
Network features | Connection: static address, from management server, or from gateway |
DHCP server: built-in or external DHCP server | |
Cloud platform server | |
设备管理 | Backup configuration |
Restore configuration | |
Factory reset | |
Restart includes scheduled and immediate restart | |
Firmware upgrade | |
Time management includes system display time and time synchronization | |
System log | |
Fat/Fit AP mode switching |
