Outstanding Performance, Powerful Efficiency
Powered by high-performance HG C86-4G series processors and a new memory architecture with DDR5 support.
Uses national cryptographic algorithms and CSV for virtualization and memory encryption, with a built-in security co-processor for chip-level root of trust.
Rich Configuration, Ultimate Scalability
Supports up to 12 x 3.5/2.5-inch, 24 x 2.5-inch, or 25 x 2.5-inch drive combinations.
Supports up to 10 standard PCIe expansion slots and two OCP slots, leaving ample room for performance upgrades.
Secure, Reliable, Efficient and Stable
Supports 1+1 redundant power for stable system operation.
National cryptographic boot security with hierarchical step-by-step authentication.
Rigorous testing, reliable and stable.
Certified under China Compulsory Certification (CCC).
Rigorous testing ensures stable server operation in demanding environments.

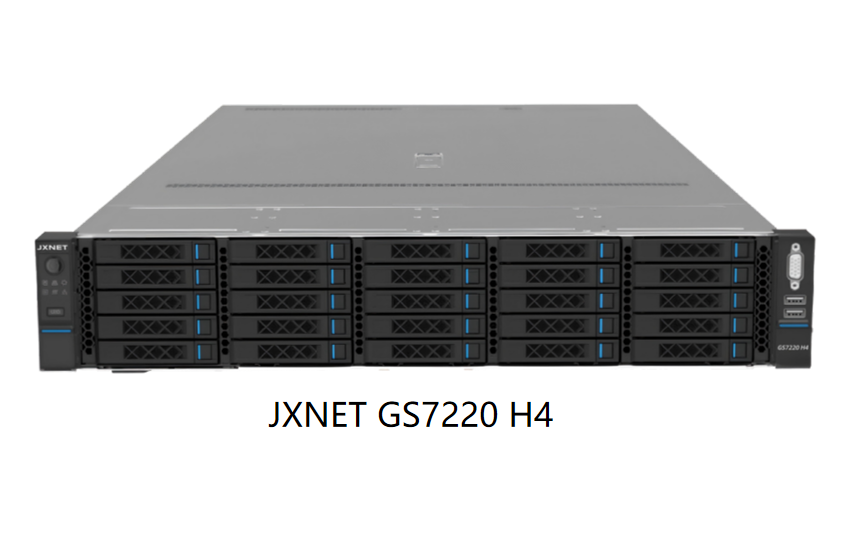

产品型号 | JXNET GS7220 H4 | ||
Product form factor | 2U dual-socket rack server | ||
处理器 | Supports 2 x Hygon C86-4G 7400 series processors, up to 128 physical cores per system | Supports 2 x Hygon C86-4G 5400 series processors, up to 64 physical cores per system | |
Memory slots | maximumSupports24xDDR5 ECCMemory, SupportsRDIMMMemory, maximumSupports5200MT/s | maximumSupports16xDDR5 ECCMemory, SupportsRDIMMMemory, maximumSupports5200MT/s | |
Local storage | Front: 12 x 3.5/2.5-inch, 24 NVMe, or 25 x 2.5-inch drives Built-in: 2 x M.2 SSD / 4 x SATA/SAS drives Rear: 6 drives | Front: 12 x 3.5/2.5-inch or 24 x 2.5-inch drives Built-in: supports 2 x M.2 SSD Rear: 4 x 2.5-inch + 4 x 3.5-inch drives | Front: 12 x 3.5/2.5-inch or 24 x 2.5-inch drive combinations Built-in: supports 2 x M.2 SSD Rear: 2 or 8 drives |
RAID support | Supports pass-through, RAID 0/1/5/6/10/50/60, and other storage configurations Supports supercapacitor power-loss protection, RAID migration, drive roaming, self-diagnostics, web remote setup, RAID secure boot | ||
PCIe expansion | maximumSupports10xPCIe 5.0slot Supports 2 OCP 3.0 slots | maximumSupports11xPCIe 5.0slot (includes 1 built-in RAID slot) Supports 2 OCP 3.0 slots | Supports 6 or 10 PCIe 5.0 slots Supports 1 or 2 OCP 3.0 slots |
网络 | Supports dual 10G, dual 25G, 100G, and other network expansion | ||
其他端口 | 1 x RJ45 management interface, 2 x VGA interfaces, 5 x USB interfaces | ||
电源 | Supports titanium power supplies with 1+1 redundancy | ||
Power supply voltage | 100-240V AC | ||
风扇 | Supports 6 redundant fan modules | Supports 4 or 6 redundant fan modules | |
Operating system | Supports Galaxy Kylin and others | ||
Product certification | CCC certified | ||
Management features | Integrated BMC chip Supports TPM/TCM | Integrated BMC with 1 x RJ45 management port | |
温度 | 工作温度：5~40℃；贮存运输温度：-40~70℃；工作湿度：5%~90%；贮存运输湿度：5%~93%；大气压86~106kP | ||
