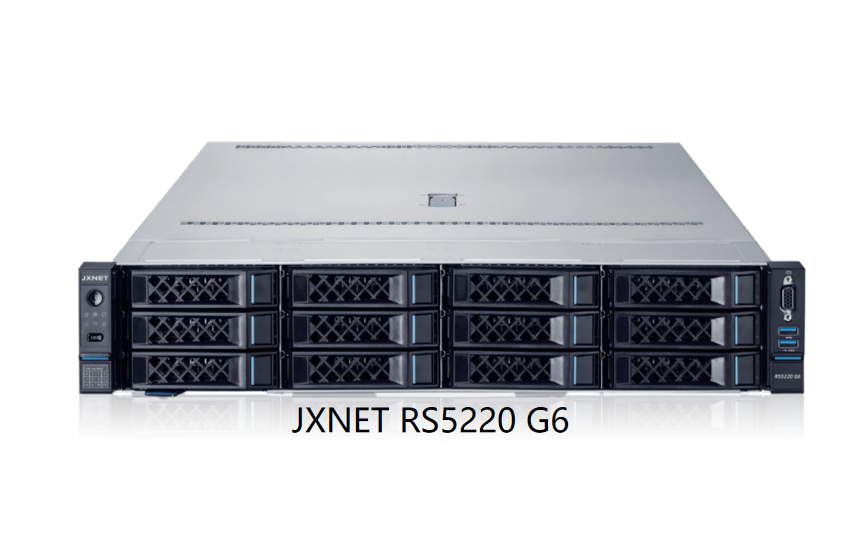

JXNET RS5220 G6 Compute Server

High-efficiency compute, powerful performance.

Built on Intel® Xeon® 6 SP and AR dual compute platforms with air cooling supporting up to two 550 W TDP CPUs.

The SP platform supports 32 x 6400 MT/s DDR5 ECC memory modules. With AIC CXL memory expansion devices, up to 24 additional DDR5 modules can be added. RDIMM is supported, and the system also supports 16 x 8000 MT/s MRDIMM modules with 25% higher memory bandwidth than RDIMM for demanding memory workloads.

The AP platform supports 24 x 6400 MT/s DDR5 ECC or 24 x 8800 MT/s MRDIMM memory modules with up to 2.35x bandwidth improvement.

Supports latest CXL E3.S storage media as high-speed cache beyond traditional memory DIMMs for large-capacity caching workloads.

Ultimate design, versatile configuration.

Delivers extreme compute, storage, and network performance with modular design for flexible configuration. Storage supports up to 45 x 2.5-inch or 22 x 3.5-inch drives, 48 x E3.S SSDs, and optional rear SATA/NVMe M.2 modules to meet diverse storage needs.

Full PCIe 5.0 upgrade with up to 21 PCIe expansion slots.

Supports two or three optional hot-swappable OCP 3.0 modules with 1G, 10G, 25G, 40G, 100G, 200G, and 400G network interface options.

Front I/O design allows cold-aisle maintenance, reducing O&M difficulty, extending life of heat-sensitive components such as optical modules and SmartNICs, and improving data transmission stability.

Agile, open, secure, and intelligent.

Redundant BIOS/BMC design enables boot from backup chips and BMC online upgrade without service interruption for improved business continuity.

Supports intelligent O&M with innovative features including memory failure pre-warning (MUPR), seamless firmware upgrade (IRUT), imported fault diagnosis (DMPU module), and fine-grained power failure pre-warning. Cloud-based O&M with online diagnostics greatly reduces data center O&M complexity and cost.

Fully supports InBry BMC based on the Open BMC open-source community for automated, fine-grained, and secure O&M.

Green Energy Efficiency for carbon reduction.

Supports cold-plate liquid cooling and EVAC and other efficient cooling solutions. Cold-plate leak detection enables smarter motherboard power control for full-stack liquid cooling data center solutions.

Continuously optimized thermal strategy with Jiaxin single-fan intelligent regulation adjusts fan speed and airflow based on real-time regional load for energy savings.

Emphasizes green environmental protection: key components meet RoHS lead-free requirements and packaging is 100% recyclable.
