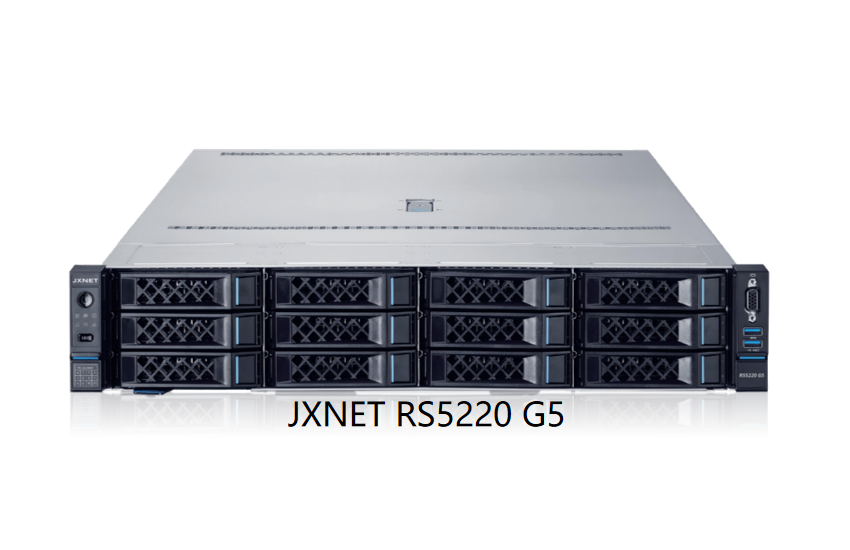

JXNET RS5220 G5 Compute Server

Product form factor

2U rack-mount

处理器

支持1颗或2颗英特尔®至强®第四代/第五代可扩展处理器

芯片组

intel Emmitsburg

内存

maximumSupports32xDDR5 5600MT/sMemory

One CPU: 16 DIMMs; two CPUs: 32 DIMMs

Supports RDIMM

存储

通用

前IO

Front panel:

12 x 3.5-inch SAS/SATA/NVMe drives

24 x 2.5-inch SAS/SATA/NVMe drives

25 x 2.5-inch SAS/SATA drives (up to 4 NVMe)

24*E3.S SSD

Front panel:

9 x 3.5-inch SAS/SATA drives (up to 2 NVMe)

8/16 x 2.5-inch SAS/SATA/NVMe drives

Rear panel:

4 x 3.5-inch SAS/SATA drives and 4 x 3.5-inch SAS/SATA/NVMe drives

4 x 3.5-inch SAS/SATA drives and 2 x SATA M.2/E1.S SSD

10 x 2.5-inch SAS/SATA/NVMe drives

Rear panel: -

Built-in storage:

Up to 3 TF cards (1 BMC, 2 PCH)

maximumSupports2*SATA M.2or2*PCIe x4 M.2

Up to 4 x 3.5-inch SAS/SATA or 10 x 2.5-inch SAS/SATA drives

Built-in storage:

Up to 3 TF cards (1 BMC, 2 PCH)

maximumSupports2*SATA M.2or2*PCIe x4 M.2

Storage controller

RAID controller, SAS controller

板载PCH支持14*SATA接口

Intel onboard NVMe controller, optional Intel NVMe RAID key

网络

2 optional hot-swappable OCP 3.0 modules

3 optional hot-swappable OCP 3.0 modules

I/O expansion slots

Up to 16 PCIe expansion slots including 1 RAID mezz and 2 hot-swappable OCP 3.0

Up to 13 GPU expansion slots; supports 8 x PCIe x16 full-height full-length single-width GPU accelerators or 4 x dual-width GPU accelerators

Liquid-cooled config: up to 9 PCIe expansion slots including 2 hot-swappable OCP 3.0

Up to 20 PCIe expansion slots including 1 RAID mezz and 3 hot-swappable OCP 3.0 (1 front, 2 rear)

Up to 16 GPU expansion slots; supports 8 x PCIe x16 full-height full-length single-width GPU accelerators or 4 x dual-width GPU accelerators

接口

Front:1个USB 2.0接口，1个USB 3.0接口，1个DB15 VGA接口，1个Type-C接口

Rear:2个USB 3.0接口，1个DB15 VGA接口，1个Micro USB系统串口，1个RJ45管理网口

Built-in:1个USB 3.0接口

Front:1个USB 2.0接口，1个USB 3.0接口，1个RJ45管理网口，1个DB15 VGA接口

Rear:2个USB 3.0接口，1个DB15 VGA接口，1个Micro USB系统串口，1个RJ45管理网口

Built-in:1个USB 3.0接口

风扇

6 hot-swappable N+1 redundant dual-rotor fans

电源

Supports 1+1 redundant 800/1300/1600/2000/2700 W CRPS power supplies

System management

Integrated dedicated 1000 Mbps network interface for IPMI remote management

Security features

支持双因素认证、TPM 2.0、安全面板、开箱告警、BMC/BIOS芯片级冗余、功耗封顶等

Operating system

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, and more

尺寸

With ears: W 482.4 mm; H 87 mm; D 828.4 mm

Without ears: W 435 mm; H 87 mm; D 800 mm

重量

Fully configured ≤33 kg (see technical white paper)

工作温度

5–40°C (see technical white paper)
