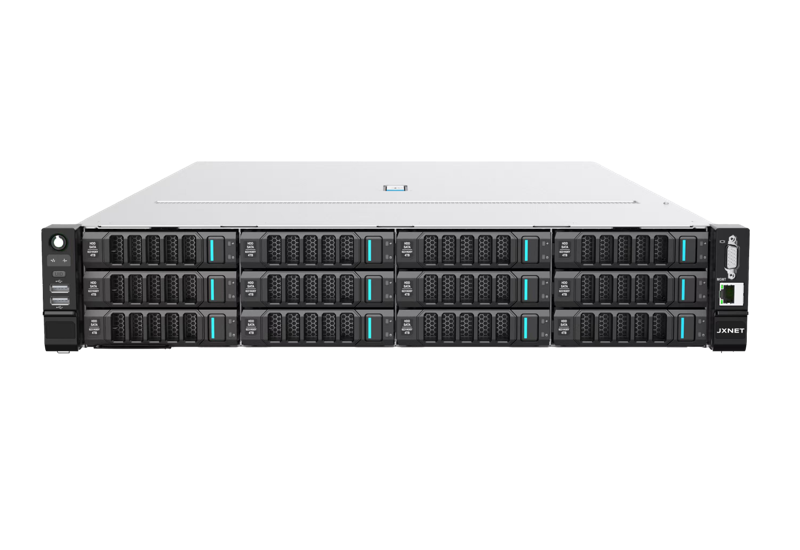

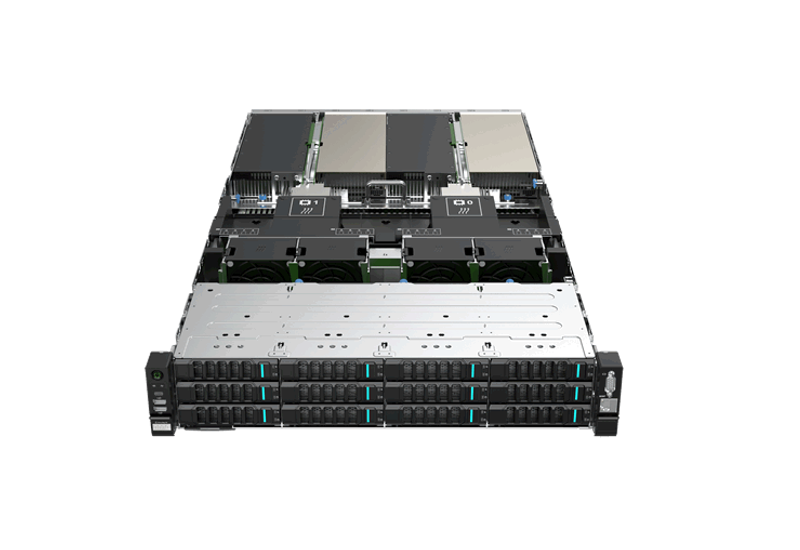

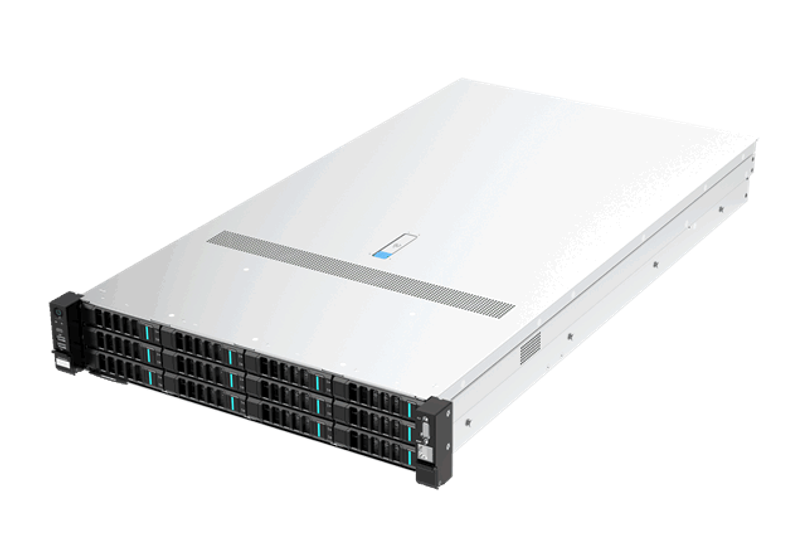

JXNET RS5220 X5 Compute Server

Product form factor

2U rack-mount

处理器

最大支持2颗英特尔®至强®第四代/第五代可扩展处理器或澜起津逮®处理器，单颗最多64个内核，最大功率385W，支持HBM技术

芯片组

intel C741

内存

Up to 32 DDR5 memory slots at up to 5600 MT/s, RDIMM ECC or LRDIMM ECC, up to 8 TB capacity

Supports CXL 1.1

存储

Supports 12 x 3.5-inch tri-mode drives (12 front)

Supports 25 x 2.5-inch drives (25 front: 17 SAS/SATA + 8 NVMe or 25 SAS/SATA)

Supports 24 NVMe U.2 drives (24 front)

Supports 4 x 3.5-inch SAS/SATA and 4 x 2.5-inch tri-mode drives (rear)

Supports 2 onboard 2280 SATA or 1 NVMe M.2

PCIe expansion

Supports 10 standard PCIe 5.0 expansion slots (10 rear: 6 full-height, 4 half-height)

Supports 2 OCP 3.0 slots

GPU

支持4张双宽GPU卡（单卡功耗最大450W）

System management

Integrated BMC AST2600 with IPMI 2.0, Redfish, SOL, KVM, virtual media, and more

网络

Onboard 1 x RJ45 dedicated management port

Supports 2 OCP 3.0 NICs

Optional network adapters based on standard PCIe slots

I/O接口

Standard: 1 x RJ45 management port, 1 x rear VGA interface, 4 x USB interfaces (2 front, 2 rear)

Optional expansion card: 2 x rear USB interfaces, 1 x USB Type-C management port, 1 x RJ45 management port

Left ear: 2 x USB 2.0 interfaces, optional 2 x USB 3.0 interfaces

Right ear: optional smart ear supports 1 VGA, 1 management port, or 1 Type-C management interface

安全性

Supports chassis intrusion detection; Intel PFR 3.0 and SGX 2.0; TCM/TPM security modules

电源

Optional 800/1300/1600/2000/2600/2700/3200 W CRPS power supplies with 1+1 redundancy

尺寸

87 mm (H) x 447.4 mm (W) x 800 mm (D) (security panel excluded)

工作温度

0℃~45℃
