High Storage Capacity
Supports up to 46 x 3.5-inch drives with up to 1 PB storage capacity for local data storage.
Powerful Computing Capability
Uses next-generation processors with up to 60% higher compute performance than the previous generation. Supports two dual-width or eight single-width GPUs for IVA scenarios with efficient local data analytics and real-time AI applications.
Ultimate I/O expansion.
Supports up to 13 PCIe expansion slots for greater I/O capacity, with various storage, network, and GPU modules for flexible deployment. Users can configure based on workload needs to eliminate I/O bottlenecks and boost overall performance.
Energy-efficient carbon reduction.
Optional cold-plate liquid cooling with full-stack liquid cooling data center solutions to reduce PUE below 1.1.

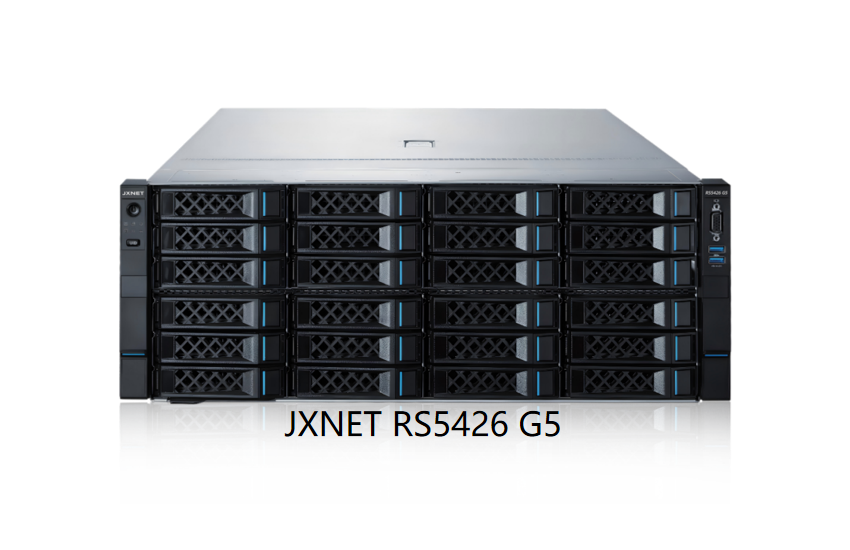

产品型号 | JXNET RS5426 G5 |
Product form factor | 4U rack-mount |
处理器 | 支持1颗或2颗英特尔®至强®第四代/第五代可扩展处理器 Up to 64 cores; turbo up to 4.2 GHz Four UPI links, up to 16 GT/s per link |
芯片组 | intel C741 |
内存 | maximumSupports32xDDR5 5600MT/sMemory |
存储 | Front: 24 x 3.5-inch SAS/SATA, hot-swappable |
Rear: 16 x 3.5-inch SAS/SATA, hot-swappable 4 x 2.5-inch SAS/SATA/NVMe SSD, hot-swappable 2 x SATA/PCIe M.2 or 2 x E1.S SSD storage modules | |
Built-in: 6 x 3.5-inch SAS/SATA drives (center-mounted) Up to 2 TF cards maximumSupports16xU.2 NVMe | |
Storage controller | RAID controller, SAS controller 板载PCH支持14*SATA接口 Intel onboard NVMe controller, optional Intel NVMe RAID key |
网络 | Rich network expansion with 2 hot-swappable OCP 3.0 NICs Supports PCIe 5.0 and SmartNIC expansion |
I/O expansion slots | Up to 13 PCIe slots including 1 dedicated RAID PCIe slot, 2 x OCP 3.0 NIC slots, PCIe 5.0 supported |
接口 | Front:1个USB 2.0接口，1个USB 3.0接口，1个DB15 VGA接口，1个type-C接口 |
Rear:2个USB 2.0接口，1个DG15 VGA接口，1个COM口（micro USB），1个RJ45管理网口 | |
Built-in:1个USB 3.0接口 | |
风扇 | Hot-swappable N+1 redundant fans |
电源 | Supports 1+1 redundant 1300/1600/2000/2700 W CRPS power supplies |
System management | Integrated dedicated 1000 Mbps network interface for IPMI remote management |
Security features | 支持双因数认证、TPM 2.0、开箱告警、BMC/BIOS冗余、功耗封顶等 |
Operating system | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, and more |
尺寸 | 447mm (W)x 174.5mm (H) x 837.3mm (D) |
重量 | Fully configured ≤62 kg (see technical white paper) |
工作温度 | 5–45°C (see technical white paper) |
