Outstanding Performance, Powerful Efficiency
Powered by high-performance HG C86-4G series processors and a new memory architecture with DDR5 support.
Uses national cryptographic algorithms and CSV for virtualization and memory encryption, with a built-in security co-processor for chip-level root of trust.
Rich Configuration, Ultimate Scalability
Supports up to 46 x 3.5-inch drives and 16 NVMe drives.
Supports up to 10 standard PCIe expansion slots and two OCP slots, leaving ample room for performance upgrades.
Secure, Reliable, Efficient and Stable
Supports 1+1 redundant power for stable system operation.
National cryptographic boot security with hierarchical step-by-step authentication.
Rigorous testing, reliable and stable.
Certified under China Compulsory Certification (CCC).
Rigorous testing ensures stable server operation in demanding environments.

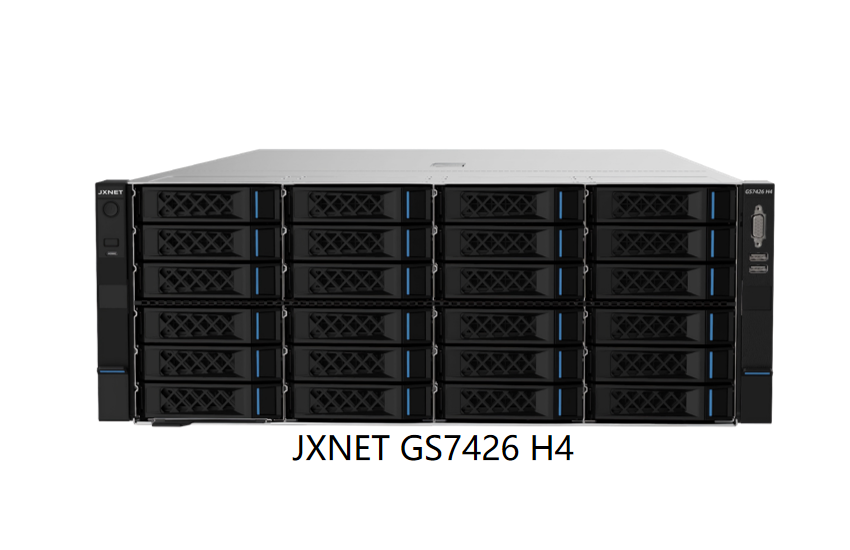

产品型号 | JXNET GS7426 H4 | |
Product form factor | 2U dual-socket rack server | |
处理器 | Supports 2 x Hygon C86-4G 7400 series processors, up to 128 physical cores per system | Supports 2 x Hygon C86-4G 5400 series processors, up to 64 physical cores per system |
Memory slots | maximumSupports24xDDR5 ECCMemory, SupportsRDIMMMemory, maximumSupports5200MT/s | maximumSupports16xDDR5 ECCMemory, SupportsRDIMMMemory, maximumSupports5200MT/s |
Local storage | Front: 24 x 3.5/2.5-inch drives Built-in: supports 6 x 3.5-inch drives Rear: 16 x 3.5-inch drives | Front: 24 x 3.5/2.5-inch drives Rear: 16 x 3.5-inch drives |
RAID support | Supports RAID 0/1/10/5/50/6/60 with cache supercapacitor protection and hot-swappable drives | |
PCIe expansion | maximumSupports12xPCIe 5.0slot (withOCP) | Supports 11 PCIe 5.0 slots (including OCP) |
网络 | Supports 1G/10G/25G/100G network expansion | |
其他端口 | 1 x RJ45 management interface, 2 x VGA interfaces, 4 x USB interfaces | 1 x RJ45 management interface, 2 x VGA interfaces, 4 x USB interfaces, 2 x Type-C serial ports |
电源 | Supports 2 high-efficiency power supplies with 1+1 redundancy; 110V–230V AC and 240V DC | |
风扇 | Supports 6 redundant fan modules | Supports 4 redundant fan modules |
Operating system | Supports Galaxy Kylin and others | |
Product certification | CCC certified | |
Management features | Integrated BMC; supports TPM/TCM | Integrated BMC with 1 x RJ45 management port |
温度 | 工作温度：5~40℃；贮存运输温度：-40~70℃；工作湿度：5%~90%；贮存运输湿度：5%~93%；大气压86~106kP | |
